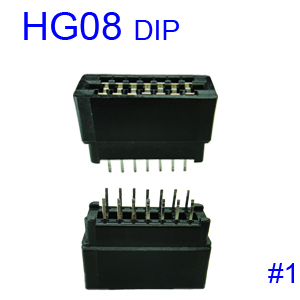

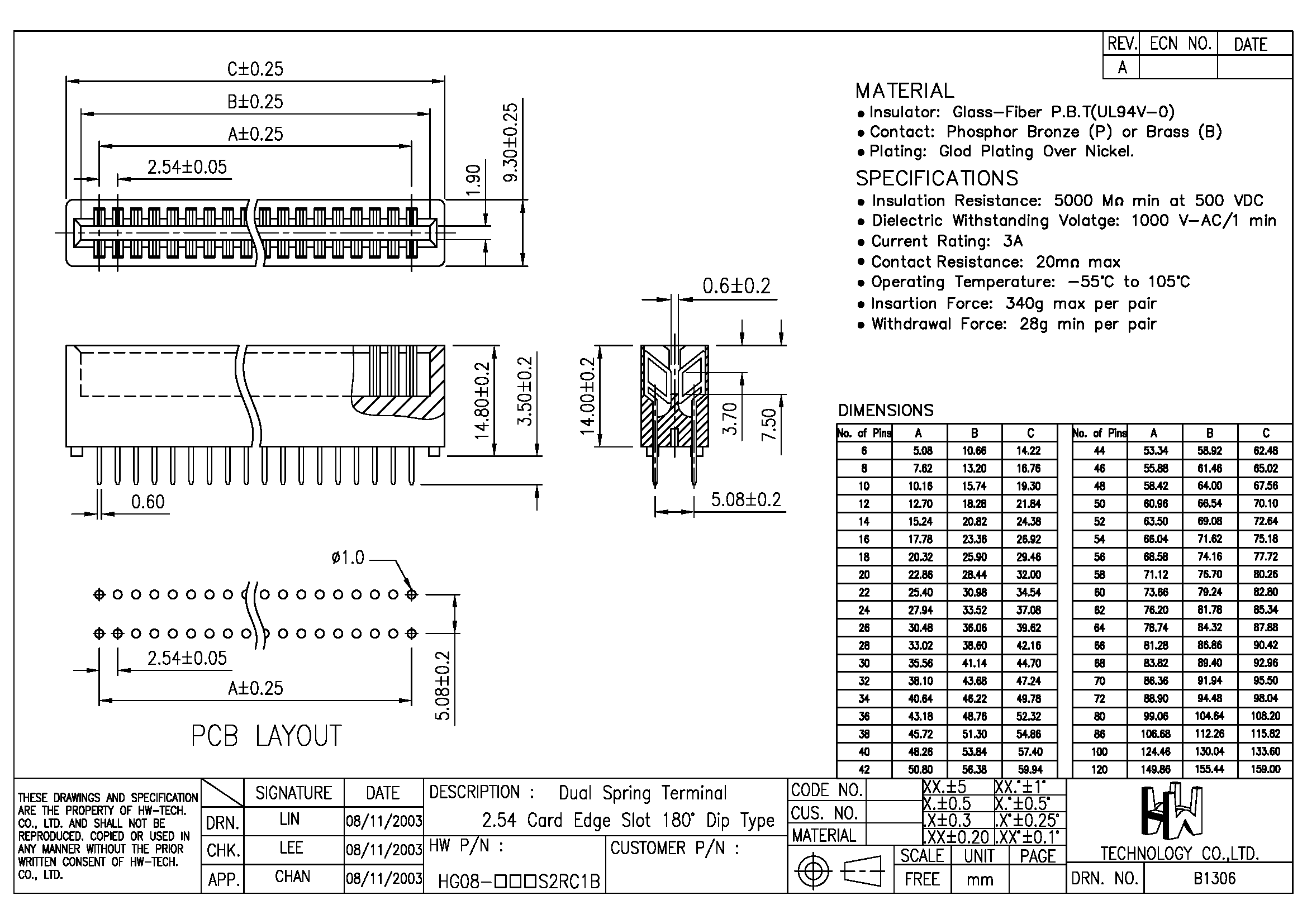

HG08--180° Dip Card Edge Slot
| 所屬分類: | 180° Dip Type |
|---|
詳細介紹
#1.(1) Plastic Height : 15.2mm(H) 9.20mm(W)
(2) Terminal : Single Spring
(3) No. of Pins : 06 , 08 , 10 ~ 104 , 110 , 120
#2.(1) Plastic Height : 14.8mm(H) 9.30mm(W)
(2) Terminal : Dual Spring
(3) No. of Pins : 06 , 08 , 10 ~ 86 , 100 , 120
#3.(1) Plastic Height : 11.8mm(H) 8.30mm(W)
(2) Terminal : Dual Spring
(3) No. of Pins : 14 , 44
#4.(1) Plastic Height : 10.3mm(H) 8.30mm(W) With Mounting Ears
(2) Terminal : Dual Spring
(3) No. of Pins : 24 , 30
